Hall St. Helena
St. Helena, California



Commercial Winery


Square Footage:

41,226 Square Feet
(Winery and Barrel Cellar)


Floor Construction Type:

20-inch Slab on Grade; One Level


Type/Size of hePEX:

83,800 Linear Feet of 5/8-inch hePEX™


Number of Cooling/Heating Zones:

5 Zones; 196 Loops spaced 6 inches on center


Energy Source
to Heat or Cool Water:

Trane® Water-Cooled Centrifugal Chiller with Cooling Tower

7 Patterson-Kelley 2,000,000 Btu Gas-Fired Boilers (mostly used for wine production)


Outdoor Design Temperature:



System-Supply Water Temperature:

42°F For Barrel Cellar;
52°F for other areas


Installing Contractor:

Bob Reid
Reid Heating & Energy, Inc.
1925 Francisco Blvd. East Ste. #3
San Rafael, CA 94901


Radiant Designer:

Peter Simmonds, Ph.D.
Senior Associate
IBE Consulting Engineers
14130 Riverside Dr., Suite 201
Sherman Oaks, CA 91423

Michael Leung, PE, LEED AP
Senior Mechanical Engineer
IBE Consulting Engineers
14130 Riverside Drive, Suite 201
Sherman Oaks, CA 91423
818-377-8220 x253



Mike Reynolds, President
HALL Wines
401 St. Helena Highway South
St. Helena, California 94574



Visit the Uponor Website for more information about products mentioned in this case study.



Back to the Uponor Case Study Listing / Media Room

COMMERCIAL: Heating & Cooling


California’s First Gold LEED Certified Winery Proves an ‘Ideal Application’ for Radiant Cooling

One of Napa Valley’s most prestigious wineries, chose an in-floor radiant heating and cooling system to deliver temperatures critical for production and aging.

Downloadable Resources:  Case Study (.pdf)  |  Word (.doc)  |  Text (.txt)  |  Image Gallery (hi-res .tif)


Hall Winery EntranceJanuary 2011

— When hydronics contractor Robert Reid saw the radiant flooring plan for a commercial winery, he questioned whether the system would work as designed.

The plans for one of Napa Valley’s most prestigious wineries, called for an in-floor Uponor radiant heating and cooling system to precisely control temperatures in two vital production areas: a state-of-the-art, 20,000 square-foot winery and a 26,931-square-foot barrel cellar. Reid’s concern was that plans specified the radiant tubing be installed at the bottom of the 20-inch-thick concrete slab, instead of sandwiched in-between.

“For most commercial applications, we position the tubing in the top third or middle to ensure a comfortable heat transfer,” says the 33-year plumbing industry veteran and owner of San Rafael, Calif.-based Reid Heating & Energy, Inc. “Initially, I was leery about placing the tubing on the bottom of the slab, but I discovered that this lower position made the slab more efficient for this particular application.”

Indeed, the radiant system did perform as planned, and the project’s environmentally friendly construction recently received the prestigious Gold Leadership in Energy and Environmental Design (LEED®) award. That recognition made Hall St. Helena, the first winery in California to achieve the top certification from the U.S. Green Building Council.

This milestone has clearly pleased owners Kathryn and Craig Hall, who first began planning an extraordinary showplace to produce their ultra-premium Bordeaux wines in 2003. Complete with a state-of-the-art production facility and sustainable design technologies, the couple’s long-term mission was to become the leader in earth-friendly California winegrowing.


To meet the precise requirements to become Gold LEED certified, planners of the Hall St. Helena winery incorporated many sustainable design elements and practices including:

Radiant Floors – Radiant flooring allows Hall to control the facility’s temperature while conserving energy and providing a stable storage and production environment.

Solar Energy – The sun provides more than 35 percent of the energy needed to power Hall St. Helena. Solar photovoltaic cells (solar panels) on the rooftops of the barrel cellar and fermentation building convert sunlight directly into electricity. Approximately 42,000 square feet of solar panels span the winery roofs.

Local Building Materials – More than 10 percent of materials used to build the facility were extracted, harvested or recovered, as well as manufactured, within 500 miles of the project site.

Recycled Building Materials – More than 10 percent of the materials used were made with recycled content.

Water Conservation – Drought-tolerant plant species selected for the winery landscaping will reduce the demand for irrigation by more than 50 percent. All of the landscaping and vineyards are irrigated with recycled water. A 40 percent reduction of building water has also been achieved through the use of low-flow water outlets without compromising performance.

Radiant heating and cooling is a fairly new trend in wineries acknowledges project engineer Peter Simmonds, Ph.D. with Los Angeles-based IBE Consulting Engineers, who adds that the efficient technology helped achieve the Gold LEED status.

“We explored a range of conventional systems to newer technologies, such as chilled structural beams, but radiant was the only option to deliver the consistent and precise temperature control we required,” says Simmonds, who calls the winery an ideal application for radiant. “Because temperature and humidity have the biggest impact on winemaking, it was vital to design a system that could maintain a consistent 55-degree [Fahrenheit] operating temperature. If we got this aspect of the job wrong, the entire project would have been jeopardized.”

Not surprisingly, Hall’s other winery leverages a similar in-floor radiant system to control temperatures and maximize energy/cost efficiencies.

With radiant technology approved, the design team turned their sights toward overcoming two of the project’s key challenges: maintaining the mandated temperature requirement and accommodating a thick concrete slab.

“Temperature control plays a major role in the winemaking process,” explains Kathryn Hall, who notes that the loss of temperature control can ruin an entire batch of wine and would result in a significant loss.

As noted, the winery’s barrel cellar required a 55°F average set temperature, whereas most commercial applications typically want occupants to feel a comfortable 78°F. And while the majority of the radiant system’s work is spent cooling the production areas, it is also capable of heating the space so that the ideal temperature is maintained, regardless of the outdoor temperature. A ventilation system provides supplemental cooling and humidity control, as temperatures can vary among the stacks of barrels that extend from the cellar floor to the top of the 25-foot ceiling.

The second design challenge was to maintain this unusually cool operating temperature with the tubing buried in nearly two-feet of concrete. Reid notes that although typical commercial slabs are between four and six-inches thick, Hall St. Helena’s designers needed a thicker slab to accommodate the weight of the 10,000-gallon stainless steel fermentation tanks. The unusual floor thickness also provided the winery with future production flexibility, so that fermentation tanks can be relocated and secured into the slab with long bolts.

“To protect the radiant tubing from those long anchor bolts, we placed it below even the steel rebar reinforcements – so that any future slab drilling would not interfere with the radiant system,” says project engineer Simmonds. “While the 20-inch-thick slab does take longer to cool, the increased mass is ideal for maintaining the desired temperature.” Said differently, the thicker slab stays cooler, longer.

Installer Reid used roughly 83,000 linear feet of -inch Wirsbo® hePEX™ tubing, made of crosslinked polyethylene, for the two buildings. “Luckily, there were a lot of straight runs without many bends in this project,” recalls Reid, who likens the large warehouse spaces to a football gridiron. “We chose the 5/8-inch hePEX because we could sustain runs up to 500 feet per loop with the larger diameter. With 1/2-inch tube, we couldn’t really exceed 320 feet per run.”

Reid and his crew began the installation process by stapling the Wirsbo hePEX tubing to sheets of 2-inch, rigid insulation at roughly six-inches on center. “Obviously, with spacing so tight, we had to stagger turns and flair out the tubing before making a turn,” he says.

With nearly 200 loops at an average of 490 feet, Reid’s football field analogy wasn’t far off the mark. The Wirsbo hePEX tubing was routed to 14 manifolds that provide control for the two buildings. Once a section was stapled, a rebar mesh was laid on top of the tubing to provide support for the substantial slab floor.

“We left the tubing under about 100-pounds of water pressure during the rebar installation and concrete pour, so we could immediately identify and replace any portion that was inadvertently punctured,” explains Reid.

All in all, he says, the project was very unique and memorable. “Although we do hundreds of commercial radiant installations a year, only one or two involve cooling – and nothing on the scale of this project,” concludes Reid. “Hall St. Helena was unique for its unconventional ‘cool’ temperature, thick foundation and the sheer size of the warehouse buildings.”

According to the project’s owners, the radiant system has exceeded expectations. “Green building technologies such as radiant, have always been an important part of who we are and what we do,” says Kathryn Hall. “Aside from achieving energy efficiency, the radiant system allows our winemaking team to maintain precise control of the temperature inside our new buildings, which is vital to ensuring the quality of our award-winning wines.”


Uponor, Inc. is a leading supplier of plumbing, fire safety and radiant heating and cooling systems for the residential and commercial building markets in the United States. Uponor, Inc. employs 380 people at its North American headquarters in Apple Valley, Minn. For more information, visit or call (800) 321-4739.

For more information about Uponor, visit the Uponor media room at

For editorial assistance, contact John O’Reilly c/o GreenHouse Digital + PR at (815) 469-9100; e-mail:

© 2011 Uponor, Inc.
Uponor is a registered trademark of Uponor Corporation and Uponor, Inc.




Back to top






To download a hi-res image file, click on the desired image and a zip archive automatically downloads to your computer. Due to how various browers handle downloads, you may have to expand the zip archive manually.

The zip archive expands into a .tif file; 300ppi; CMYK.

Hall Winery

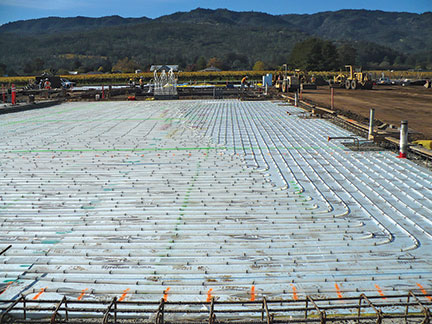

With nearly 200 loops at an average of 490 feet, the radiant tubing installer compared the winery’s large warehouse spaces as long, narrow football fields.


File Name: Uponor-CS-Hall-Winery-312.tif
Image Size: 6" wide x 4.5" high (1800 x 1350 pixels)

Copyright 2010 Mary Steinbacher


Hall Winery

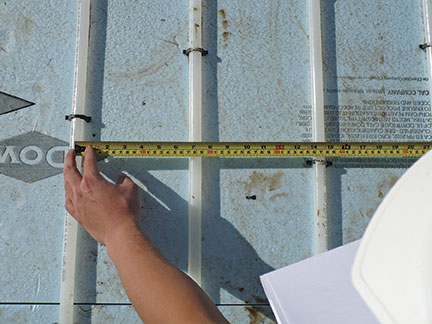

The installation process began by stapling the 5/8-inch hePEX tubing to the 1½-inch rigid insulation sheets at roughly six-inches on center.


File Name: Uponor-CS-Hall-Winery-314.tif
Image Size: 6" wide x 4.5" high (1800 x 1350 pixels)

Copyright 2010 Mary Steinbacher


Hall Winery

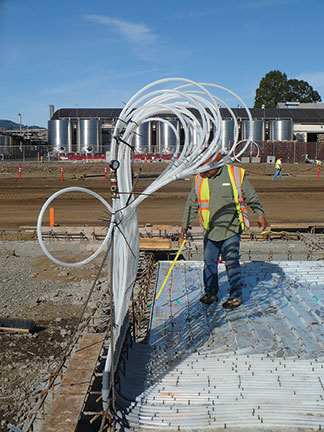

The roughly 83,000 linear feet of 5/8-inch Wirsbo® crosslinked polyethylene hePEX tubing was routed to one of 14 manifolds that help maintain a brisk 55°F room temperature in the Hall St. Helena Winery barrel cellar.


File Name: Uponor-CS-Hall-Winery-317.tif
Image Size: 4.5" wide x 6" high (1350 x 1800 pixels)

Copyright 2010 Mary Steinbacher


Hall Winery


Hall St. Helena, one of Napa Valley’s most prestigious wineries, chose an in-floor radiant heating and cooling system to precisely control temperatures at its state-of-the-art production facility.


File Name: Uponor-CS-Hall-Winery-074.tif
Image Size: 6" wide x 4" high (1800 x 1200 pixels)

Copyright 2010 Mary Steinbacher


Hall Winery

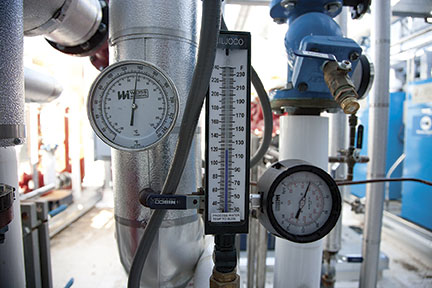

Because temperature and humidity have the most pronounced effect on winemaking, maintaining a brisk 55°F operating temperature was paramount – making this an ideal application for an in-floor Uponor radiant system.


File Name: Uponor-CS-Hall-Winery-Temperature.tif
Image Size: 6" wide x 4" high (1800 x 1200 pixels)

Copyright 2010 Mary Steinbacher


Hall Winery

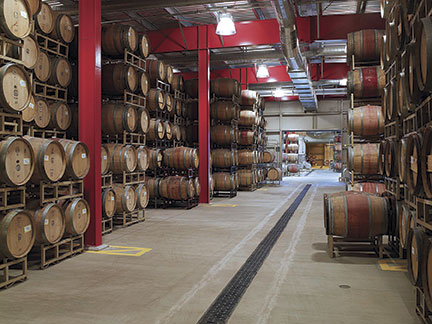

One of Napa Valley’s most prestigious wineries use a radiant system from Uponor to maintain a brisk 55°F in this 26,931-square-foot barrel cellar.


File Name: Uponor-CS-Hall-Winery-Cellar.tif
Image Size: 6" wide x 4.5" high (1800 x 1350 pixels)

Copyright 2010 Mary Steinbacher


Hall Winery

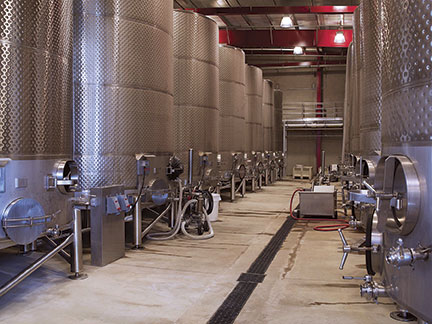

Roughly 83,000 linear feet of 5/8-inch Wirsbo® crosslinked polyethylene hePEX™ was installed below the 20-inch-thick concrete slab; necessary to support these 10,000-gallon stainless steel fermentation tanks.


File Name: Uponor-CS-Hall-Winery-Tanks.tif
Image Size: 6" wide x 4.5" high (1800 x 1350 pixels)

Copyright 2010 Mary Steinbacher


Hall Winery


The HALL St. Helena LEED® certified winery is one of most advanced wineries in California, with state-of-the-art facilities designed for ultra-premium wine production.


File Name: Uponor-CS-Hall-Winery-Entrance.tif
Image Size: 6" wide x 4" high (1800 x 1200 pixels)

Copyright 2010 Mary Steinbacher
